Nuassembly, Inc. has been a leading supplier of optics and crystals for ultra-fast lasers. In 1997, we were the first in the market to supply the thinnest BBO (50micron) crystal for autocorrelation of ultra-short pulses.
Now, in response to the ever increasing demand from the ultrafast laser research and industry. We are here to offer you our industry field proven high quality ultrafast optics, crystals and electronics off-the-shelf --- available from stock and ready to ship to you nextday.
Here, we supply parts most often used in Harmonic Generation, OPA, Transient Absorption and Gated Upconversion, Autocorrelators and other mechanical and CCD components.
Below you will find the list of our stock ultrafast optics and crystals, and the specsheet and prices are available online or from our sales.
| Harmonic Generator | ||
| Part# | Description | Price |
| SHG-PPLN-1550 |
PPLN 2mm long, and 5mm x 0.5mm aperture, in a crystal oven and oven controllerpackage.
PPLN operating temperature is optimized at 80~120 degree C (with 4 different grating periods). Focusing length 40~50mm, and tuned for 120fs laser input, typical SHG efficiency is 30% for 100MHz and 10mW input at 1550nm. |
$2,480.00 |
| SHG-A-7X7X0.6MM |
TYPE I SHG 800NM, 7X7X0.6mm THICK, AR/AR800+400NM,mounted in 1" diameter clear anodized ring,

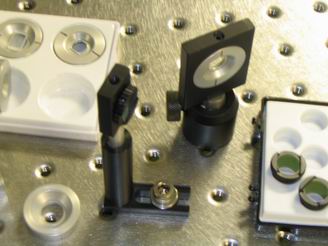

designed for transform limited SHG of amplified 800nm, 120fs laser pulses. Typical SHG efficiency is >25% for 1mJ/pulse, 5mm diameter, 120fs laser pulses at 800nm. Damage threshold is measured and rated as 3mJ/pulse, 6mm diameter, 120fs laser pulses at 800nm. Click to find animation of the mounted disc in a 1" mirror mount and mouting plate. |
$1,080.00 |
| THG-A-7X7X0.4MM | TYPE I THG 800NM, 7X7X0.4mm THICK, AR/AR800+400+266NM, mounted in 1" diameter clear anodized ring, designed for transform limited THG of amplified 800nm, 120fs laser pulses. Damage threshold is measured and rated as 3mJ/pulse, 6mm diameter, 120fs laser pulses at 800nm. |
$1,280.00 |
| SHG-B-5X5X2MM | TYPE I SHG (LBO), 5X5X2.0mm, mounted in special designed clear anodized holder, designed for transform limited THG of oscillator 800nm, 120fs laser pulses. Damage threshold is measured and rated as 1W, 2mm diameter, 80MHz, 120fs laser pulses at 800nm. Material purchased from authorized sources and with our own coating. |
$1,480.00 |
| THG-B-5x5x1MM | TYPE I THG (BBO), 5X5X1mm, mounted in special designed clear anodized holder, designed for transform limited THG of oscillator 800nm, 120fs laser pulses. Damage threshold is measured and rated as 1W, 2mm diameter, 80MHz, 120fs laser pulses at 800nm. Material purchased from authorized sources and with our own coating. |
$1,200.00 |
| TP-A-10x7 | Timeplate 10x7 aperture, mounted in a 1"dia. Ring, down to 50fs | $2,800.00 |
| TP-B-7x7 | Timeplate 7x7 aperture for oscillator, mounted plate | $2,900.00 |
| RS-1A | Precision rotation stage with mitutoyo mic, CAD animation here | $420.00 |
| RS-2A | Precision DUAL AXIS rotation stage with mitutoyo mic, CAD animation | $980.00 |
| HR800-45 | HR750-850 45 AOI, 1"diameter 6mm thick, hi damage threshold for amplifiers (over 3mJ/pulse | $68.00 |
| DWP800/400-M | Zero order Dual wave (full wave @ 400nm, half wave @ 800nm), 10x10mm, mounted in rotation mount, animation and CAD design | $580.00 |
| ZWP800-M | Zero order Dual wave (half wave @ 800nm), 10x10mm, mounted in rotation mount, animation and CAD design | $195.00 |
| DWP800/400 | Zero order Dual wave (full wave @ 400nm, half wave @ 800nm), 10x10mm, no mount | $425.00 |
| ZWP800 | Zero order Dual wave (half wave @ 800nm), 10x10mm,? | $105.00 |
| HR340/500-45 | HR340-500nm, 45AOI, 1" diameter 6mm thick, amplifier collimated 0.2mJ 120fs in 5mm diameter | $225.00 |
| HR223/290-45 | HR226-290nm, 45AOI, 1" diameter 6mm thick, pass 340nm, amplifier OK, collimated 0.1mJ 120fs in 5mm diameter | $255.00 |
| HR280/335-45 | HR270-335nm, 45AOI, 1" diameter 6mm thick, amplifier OK,, collimated 0.1mJ 120fs in 5mm diameter | $265.00 |
| OPA | ||
| BBO-OPA-800-1 | 8X5X8MM, FOR OPA at 800nm, type II, Theta=27deg. AR/AR coating 800nm+1200nm | $950.00 |
| BBO-OPA-800-2 | 8X5X3MM, FOR ultra short OPA at 800nm, type II, Theta=27deg. AR/AR coating 800nm+1200nm | $950.00 |
| ZWP800-M | Zero order Dual wave (half wave @ 800nm), 10x10mm, mounted in rotation mount, animation and CAD design | $195.00 |
| TP-OPA-1300 | Timeplate 10x7x2mm for compensating 1300nm (1200~1600) and 800nm and get them synchronized for mixing | $2,295.00 |
| BBO-MIX-500 | 7X7X0.5MM, FOR mixing 800+1300nm, type II, Theta=29deg. AR/AR coating 500nm+800nm+1300 | $1,295.00 |

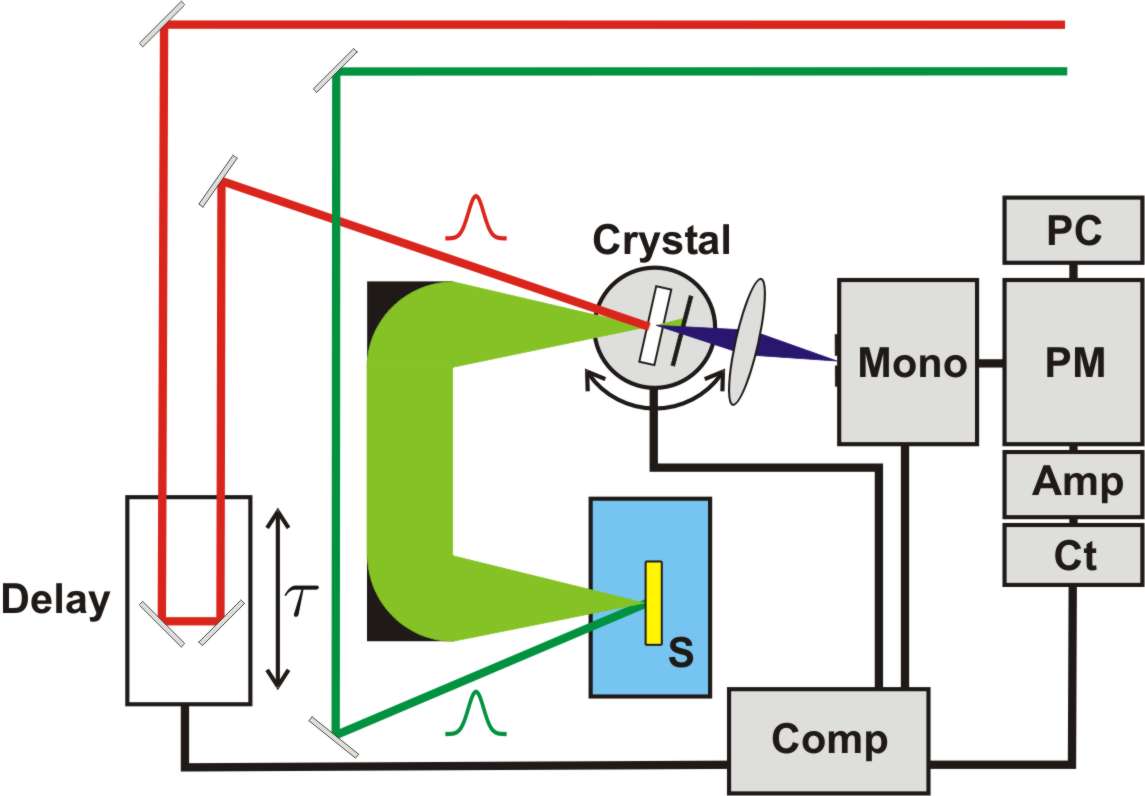

Transient Absorption & Frequency Upconversion |
||
| WWP-M | UNCOATED WP FOR ADJUSTMENT OF POLARIZATION AT ANY WAVELENGTH | $245.00 |
AUTOCORRELATOR |
||
| SHG-AC-A | 8X5X0.5MM, FOR CROSS CORRELATION, SHG 800, THETA=30, SINGLE LAYER AR/AR | $950.00 |
| ZWP800-M | $195.00 | |
| WWP-M | UNCOATED WP FOR ADJUSTMENT OF POLARIZATION AT ANY WAVELENGTH | $245.00 |
| CCD-LIS1024-NOW | 8MM WIDE LINEAR, WITH NO BK7 WINDOW, UV RESPONSE DOWN TO 250NM | $668.00 |
| CCD-LIS1024-WIN | 8MM WIDE LINEAR, WITH?/span>BK7 WINDOW | $338.00 |
| CCD-LIS1024-NOW | 8MM WIDE LINEAR, WITH NO BK7 WINDOW, UV RESPONSE DOWN TO 250NM | $668.00 |
| CCD-ELIS1024-USBN | 8MM WIDE LINEAR, WITH?/span>BK7 WINDOW,USB2.0 | $888.00 |
| CCD-ELIS1024-USBN | 8MM WIDE LINEAR, WITH NO BK7 WINDOW, UV RESPONSE DOWN TO 250NM, USB2.0 | $1,188.00 |
| Other | ||
| RMWP-10X10 | ROTATION MOUNT FOR WAVEPLATE, 10X10 MM | $58.00 |
| RMWP-25.4 | ROTATION MOUNT FOR WAVEPLATE, FOR LARGER WAVEPL | $98.00 |
| CCD-LIS1024-NOW | 8MM WIDE LINEAR, WITH NO BK7 WINDOW, UV RESPONSE DOWN TO 250NM | $668.00 |
| CCD-LIS1024-WIN | 8MM WIDE LINEAR, WITH?/span>BK7 WINDOW | $338.00 |
| CCD-LIS1024-NOW | 8MM WIDE LINEAR, WITH NO BK7 WINDOW, UV RESPONSE DOWN TO 250NM | $668.00 |
| CCD-ELIS1024-USBN | 8MM WIDE LINEAR, WITH?/span>BK7 WINDOW,USB2.0 | $888.00 |
| CCD-ELIS1024-USBN | 8MM WIDE LINEAR, WITH NO BK7 WINDOW, UV RESPONSE DOWN TO 250NM, USB2.0 | $1,188.00 |
